Motorized Automated Sliding Gates Telescopic With Anti Collision

    Buy cheap Motorized Automated Sliding Gates Telescopic With Anti Collision from wholesalers

    Buy cheap Motorized Automated Sliding Gates Telescopic With Anti Collision from wholesalers
    • Buy cheap Motorized Automated Sliding Gates Telescopic With Anti Collision from wholesalers

    Motorized Automated Sliding Gates Telescopic With Anti Collision

    Ask Lasest Price
    Brand Name : Hongmen
    Model Number : P863-G
    Certification : CE
    Price : USD350 - USD660 / Meter
    Payment Terms : T/T
    Supply Ability : 10.00m/month
    Delivery Time : 10 Working Days
    • Product Details
    • Company Profile

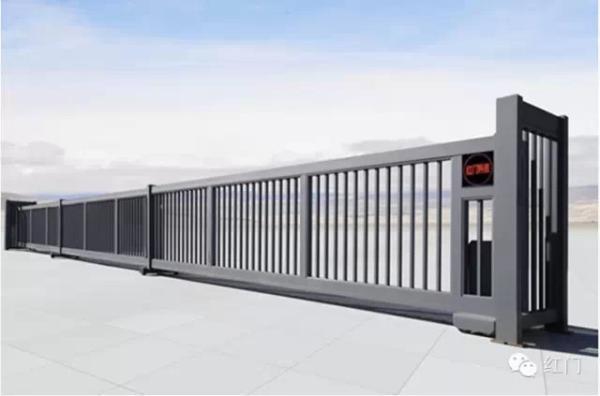

    Motorized Automated Sliding Gates Telescopic With Anti Collision

    Motorized Automated Sliding Gates Telescopic With Anti Collision



    HSG61B


    Features:

    1. Wiresless Remote Control (433MHz)

    2. Suitable For:

    a. Factory Entrance

    b. Bungalow main-gate

    c. Private Residential Area

    d. Condominium Entrance

    e. Garrage entrance
    3. EMO Button (Emergency Stop Button).
    4. Industrial Grade Aluminium Alloy (6063-T5).
    5. Powder Coating With Compliance Of AAMA2203
    6. Dispatch In Modules Form (Transportation Friendly).

    7. 100% No-Welding Points
    8. Smart Power Outage Clutch For Operating During Power Failure
    9. Anti- Collision IR Sensor with up to 60cm
    10. Anti- Climb Photo Cell With up to 30m

    11. Folded Design - Maximise and Fully Utilized The Opening Spaces



    Material Specification:

    DescriptionMaterialHardness (HW)Specification (mm)
    Upper Beam6005-T513-17115*80*d3
    Lower Beam6003-T510-17135*80*d3-4
    Front Gate Frame A/ Rear Gate Frame6003-T510-13110*80*d2.0
    Front Gate Frame B6003-T510-1380*80*d2.5
    Cross Tube6003-T510-1335*29*d1.0
    Auxillary Gate Frame6003-T510-1370*25*d1.0
    Supportive BarSUS30410-1342*44*d2.0
    Front/Rear Upright Post6003-T510-13180*100*d3.0
    Rail6003-T510-1325*18



    Technical Specification:

    Operation Voltage220V± 10%, 50Hz-60Hz
    Operation Temperature-25ºC to +70ºC
    Environment Humidity< 90%
    Operation Speed18m/min
    Motor Power Rating500W
    Motor RPM1400r/min
    IP RatingIP54
    Insulation GradeF
    Speed Reduction Ratio30: 1
    Remote Distance50m (empty space)

    Q: How do you ship it out to worldwide customers?

    A: We take all necessary precaution before its dispatch from the factory. The most inner layer is wrapping up with a thin layer of shrink wrap, then follow by a customized EPE form to firmly secure its position within the carton box.


    Q: Do you take any additional precaution if we only purchase a few sets whereby we going to ship it via LCL?

    A: Yes, we will place 4 sets of the well-packed crowd control barriers on upright position and sitting firmly on top of a plywood pallet.


    Q: Do you go through the fumigation process before exporting the goods?

    A: Due to the facts that all packaging are non-timber material, and same goes to the pallet is made of plywood which we don’t have to worry about fumigation certifications


    Q: Do you have any export experience?

    A: Yes, our company have more than 16 years of experience of exporting such innovative and unique products to all over the world


    Warranty:
    1. Drive Motor is warranted against manufacturer’s defect for lifetime
    2. Standard warranty for all components is valid for 12 months from the date of delivery
    3. This warranty does not include damages caused by:
    a. Wear and Tear
    b. Theft
    c. Accidents
    d. Act of God & Natural Disaster
    e. Unstable power supply (i.e. inconsistent voltage or lightning)


    Project References:
