Industrial Aluminium Alloy Automatic Folding Gate of Wireless
Remote Control , 433MHz
Features:
- CE Certified.
- Multi-language LED Display.
- Trackless Operation.
- Industrial Grade Aluminium Alloy (6063-T5).
- Wireless Remote Control (433MHz).
- Powder Coating
- Intelligent Self-Align (ISA) Motor.
- Smart Power Outage Clutch.
- Anti- Collision IR Sensor.
- Anti- Climb Photo Cell.
Specifications:
- Main Frame : 47.5*42*1.0 (Aluminum)
- Inner Cross Tube : 55*29.8*0.9 (Aluminum)
- Decorative Side Panel : 40*22.7*0.6 (SUS 304)
- Voltage : 220V±10% 50/60MHz
- Current : 2.5A
- Speed : 15M/Min
- IP Rating : IP 44
Product Descriptions
H0301 Configuration: Using high strength alloy aluminum (Pearl
Black), as the main material and mounted with sparkling gold and
plastic plates on the sides and imported 8K stainless steel plates
on the front.
B0302 Configuration: Using high strength alloy aluminum (Glossy
White), as the main material and no mounted sides and imported 8K
stainless steel plates on the front.
P0301 Configuration: Using high strength alloy aluminum (Glossy
White), as the main material and no mounted sides and mounted
front.
Product Details:
| Place of Origin: | China |
| Brand Name: | Hongmen |
| Certification: | CE |
| Model Number: | RD Series |
Payment & Shipping Terms:
| Minimum Order Quantity: | L=8m |
| Price: | USD 269 ~ USD 349 per meter |
| Packaging Details: | Plywood + Iron Rack |
| Delivery Time: | 10 Working Days |
| Payment Terms: | TT With 50% Deposit, 50% Payable Upon Goods Dispatch |
| Supply Ability: | 30.000m / month |
| Material : | Aluminium Alloy | Certification : | CE Certified Product |
| Operation : | Wireless Remote Control | Wireless Band : | 433/434MHz |
| Operation Voltage : | 220V AC / 36V DC | Operation Temperature : | -40°C to 80°C |
| Surface Treatment : | Powder Coated | Colors : | Silver /Black /Customize |
| Motor Power Rating : | 200W/300W/500W | | |
Main Features
Motor overload protection
The motor has overload and overheating protection function to
protect and prolong the life span of the motor. During an outage,
the clutch can be disengaged to open the gate manually with easy &
steady.
Multi-Language LED Display (Optional)
Equip with LED Display for additional security and visibility.
Intelligent Self-Align (ISA) Motor (Optional)
The drive mechanism is used Intelligent AC Head Unit, intelligent
digital navigation technology, trackless and automatic skew
correction.
Trackless Operation
The gate does not need any rails/track to operates. It generates
less noise compare to on track gates.
Smart Power Outage Clutch
Elegant key-type clutch can easily change to manual mode during a
power outage by insert a special key into the hole of the clutch
and turning it at 90 degree.
Anti- Collision IR Sensor
The gate to automatically retract when a person or object is
detected as far as 30-50cm away, thus ensuring the safety of
vehicle and pedestrians.
Wireless Remote Control
Carry it on you and control the gates opening and closing
conveniently any time, the control distance up to 50M.
Anti- Climb Photo Cell
The gate also equips with anti-climb alarm system, when there is an
obstacle detected on top of the gates, the alarm system will turn
on siren.
Windproof Structure
All section bars apply V type design to significantly reduce the
wind resistance and enhance the anti-wind capability of doors.
Durable in use
The moving parts adopt the high grade anti-wear materials, the
running wheels shows no apparent wear and tear after a 3000,000
-time swing test over a 10m distance. Sand or pebbles in rainy or
stormy weather do not affect the normal operation of the electric
gate.
Note: Although the use of the V-shape design and increased wheel
gauge greatly increase the gate frames’ wind resistance, it is
recommended that wind-resistant device equipped with guiding bars
for gates installed in coastal and windy areas.

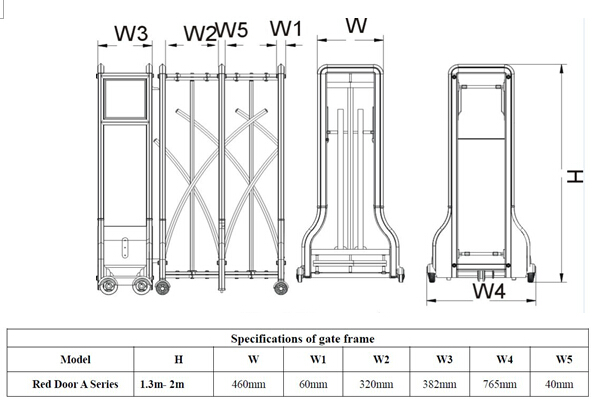

Product Technical Specifications
| Product Specifications |
| H | W | W1 | W2 | W3 | W4 | W5 |
| RD A Series | 1.3/1.41.5/1.6/1.7/1.8/1.9/2.0M | 460mm | 60mm | 320mm | 382mm | 765mm | 40mm |
| Electrical Specifications |
| H0301 | P0301 | B0302 |
| Main Frame | 47.5*42*1.0 (Aluminum Alloy) | 65.7*39.2*1.0 (Aluminum Alloy) | 47.5*39.2*1.0 (Aluminum Alloy) |
| Inner Cross Tube | 55*29.8*0.9 (Aluminum Alloy) | 55*27.2*0.9 (Aluminum Alloy) | 55*27.2*0.9 (Aluminum Alloy) |
| Decorative Side Panel | 40*22.7*0.6 (SUS 304) | / | 40*22.7*0.6 (SUS 304) |
| Voltage | Operation Temperature | Relative Humidity | Moving Speed |
| 220V ±10% , 50/60MHz | -40°C~80°C | ≤90% | 15m/min |
| IP Rating | Insulation Grade | Receiver Frequency | Remote Distance |
| IP 44 | E | 434MHz | 50m(Empty Space) |
Warranty
1. Drive Motor is warranted against manufacturer’s defect for lifetime
2. Standard warranty for all components is valid for 12 months from the date of delivery
3. This warranty does not include damages caused by:
a. Wear and Tear
b. Theft
c. Accidents
d. Act of God & Natural Disaster
e. Unstable power supply (i.e. inconsistent voltage or lightning)

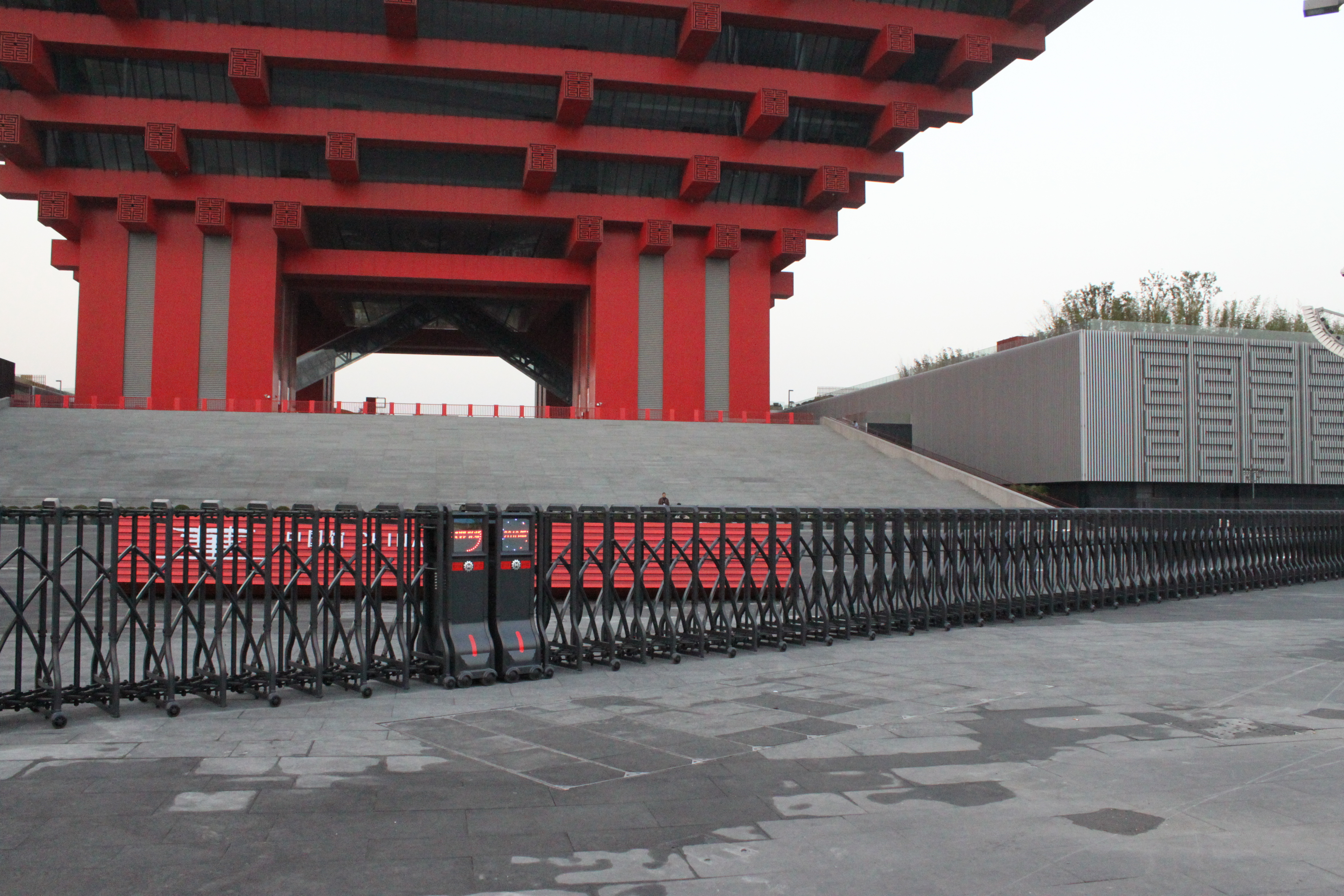

Project References
